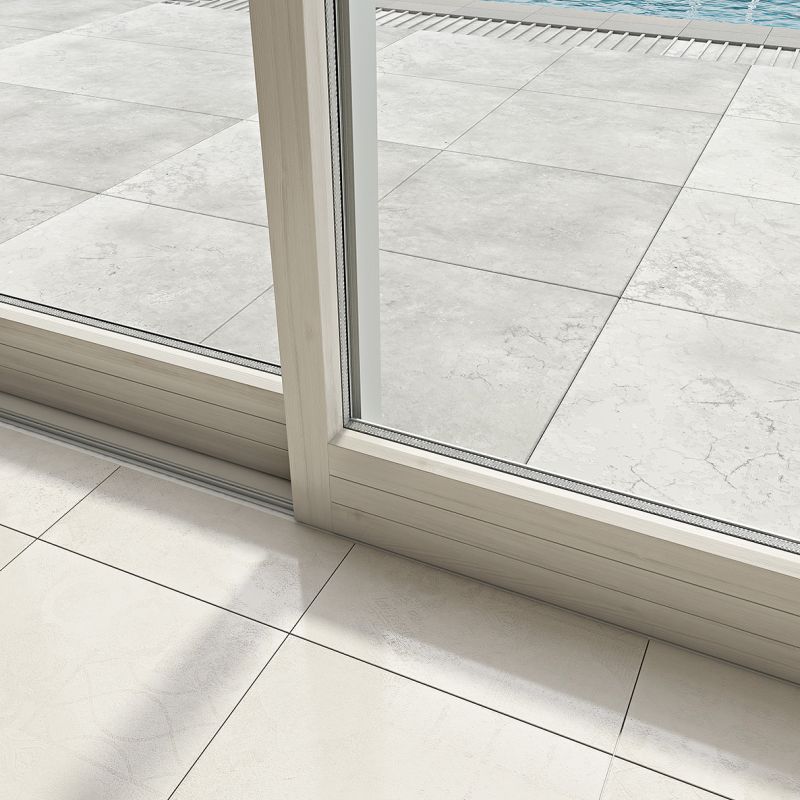

Frame with 68 x 85 mm profile and leaf profile 86 x 78 mm with load-bearing structure in wood complete with external covering in extruded aluminium profiles, with double thermo-acoustic seal. 90° corner node joint (patented system). 30-mm glass for excellent thermal and acoustic insulation. Central symmetrical node. Extruded aluminium coating coplanar on the external side (RAL or anodised colours).

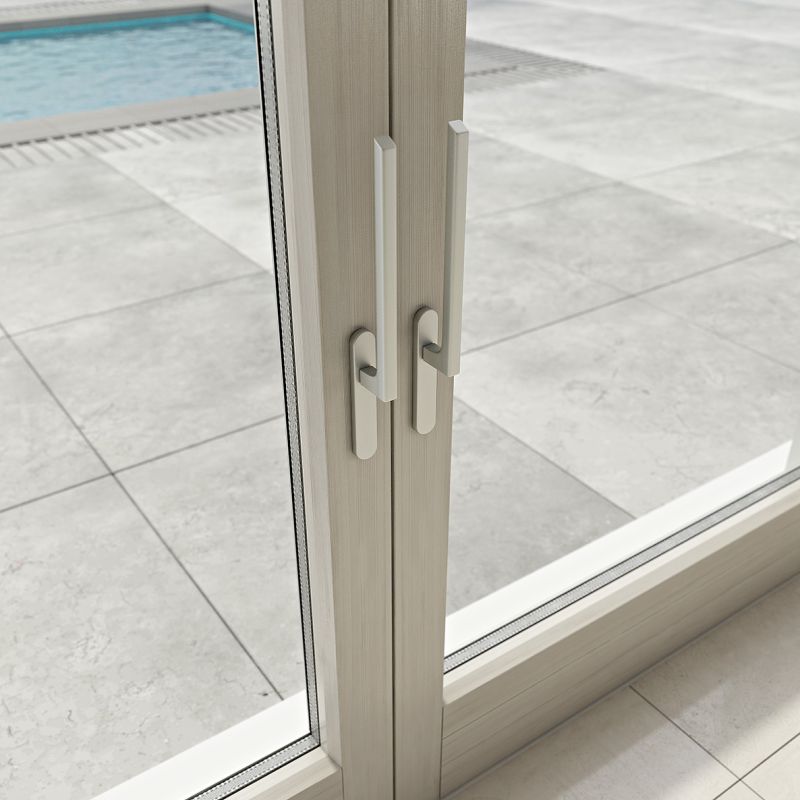

Strip hardware with anti-corrosion protection; three locking points on windows and four locking points on French windows with adjustable latches. The secondary leaf is fitted with a lower bolt for locking.
Water cycle with initial impregnation of antibacterial, anti-mould and anti-woodworm treatment, intermediate phase with insulating primer and third phase with electrostatic spray finish with UV protection. Extreme flexibility in production that guarantees endless customisation of the forms, sizes and opening systems, in order to meet all architectural and housing needs.
Air permeability: 4 (UNI EN 1026 and UNI EN 12207)
Water tightness: E1200 (UNI EN 1027 and UNI EN 12208)
FIXTURE WITH CE MARKING
RW up to 41 dBs
Up to Uw = 1.3 W/m²K. The transmittance values reported below have been calculated according to UNI EN 10077-1 and UNI EN 10077-2 standards, using the standardised dimensions foreseen by the UNI EN 14351-1 standard (PF = 1480 x 2180 mm, FI = 1230 x 1480), on the basis of the “Tenero” wood and a double-glazing with Warm Edge spacer.
